UGL-3C Intelligent Real-time Monitoring Seismograph
UGL-3C is a three-component, intelligent node seismograph introduced by our company for real-time monitoring of geological disasters, long-term real-time monitoring of earthquakes and real-time monitoring of oil and gas fracturing.The main advantages of this product are 4G remote real-time transmission, high sensitivity geophone, compact and portable, which can realize intelligent data acquisition, transmission, download and distribution.

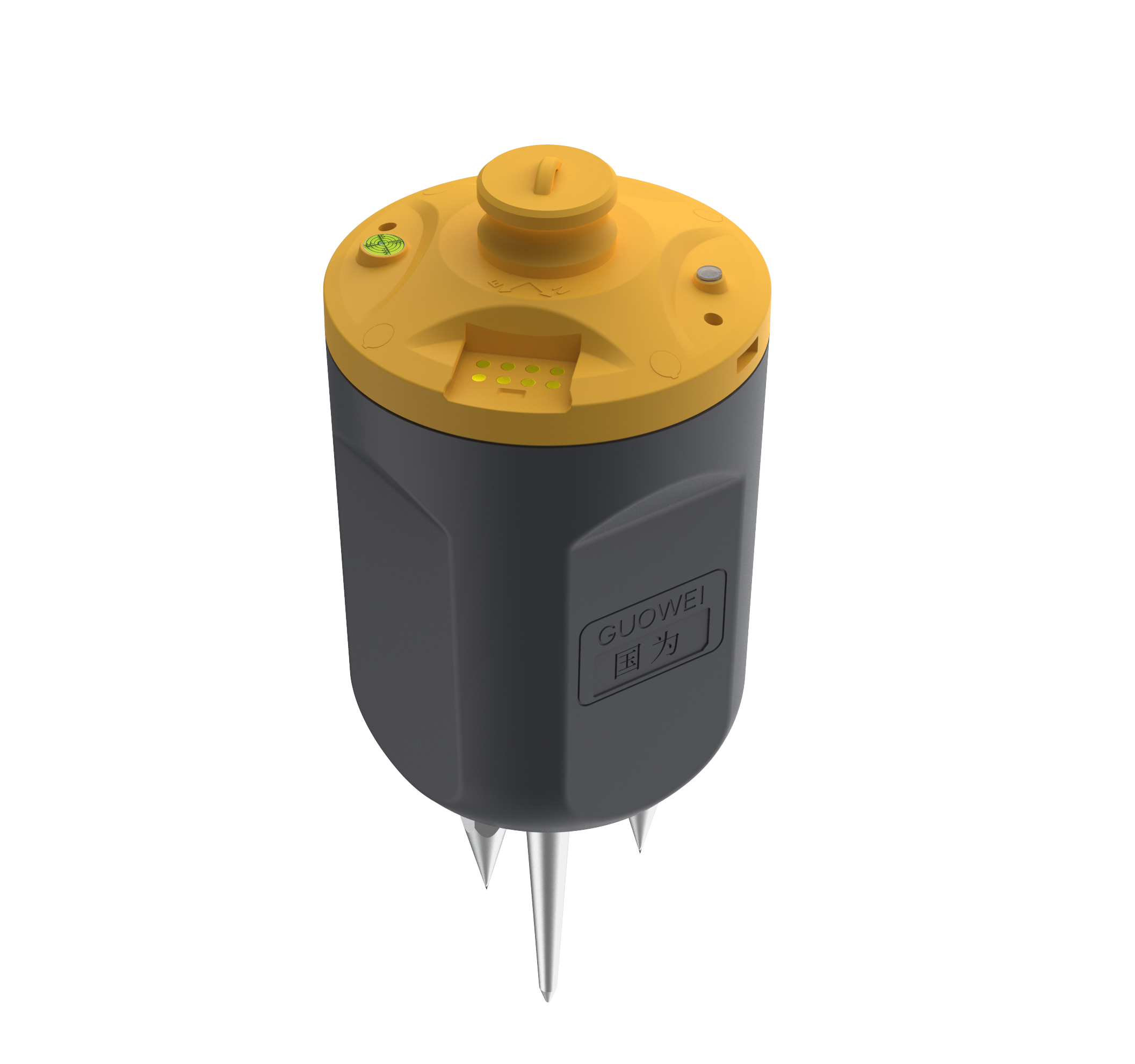

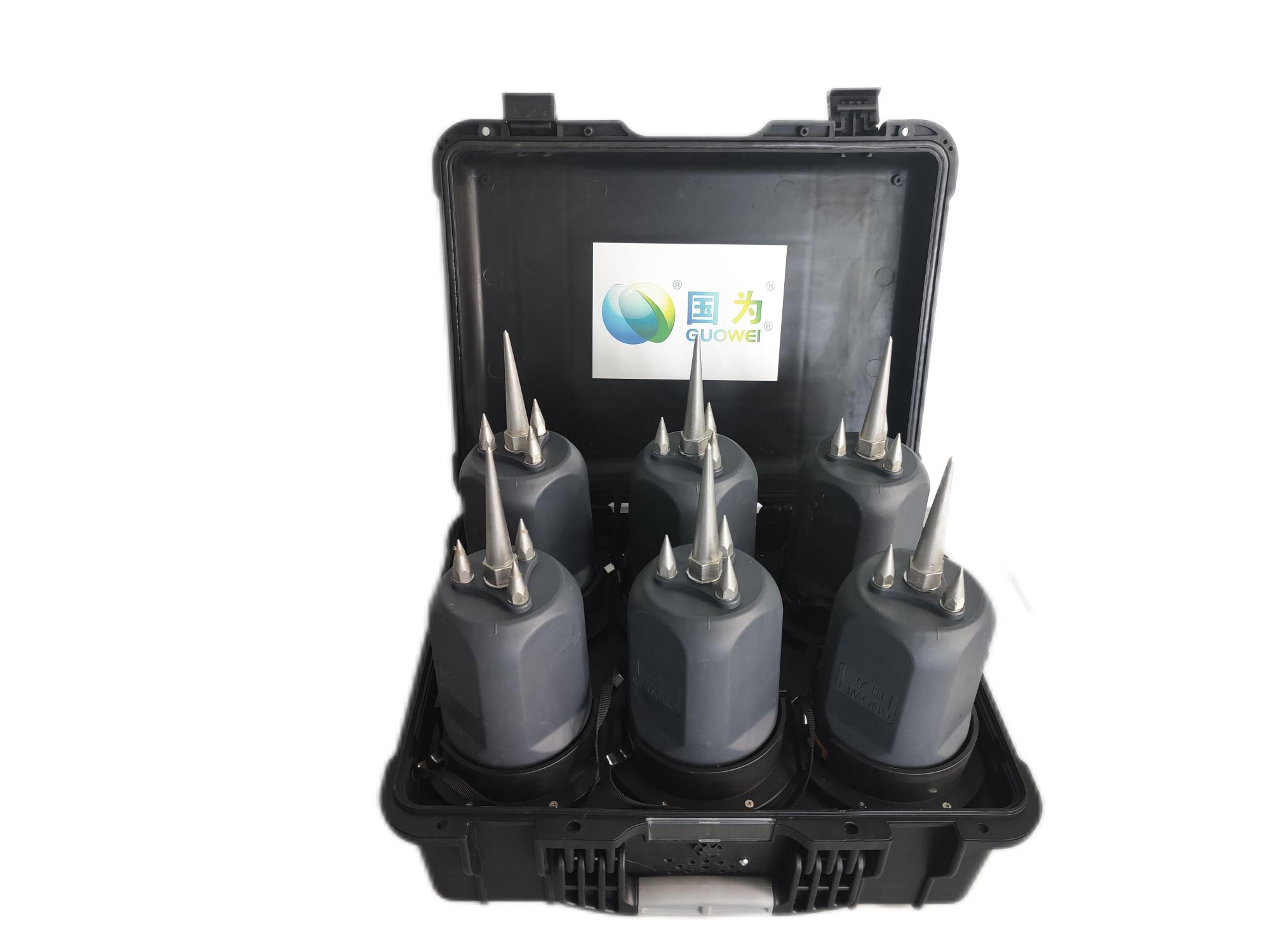

Product Picture: Integrated Charging Box:
Practical Application for UGL-3C:
Mobile real-time monitoring station of seismic bureau system;
Real time monitoring and imaging of oil and gas pressure cracking;
Long term real-time monitoring of various microseismic events;
Real time monitoring and warning of geological disasters, landslides, collapses, etc;
Research on real-time monitoring of micro earthquakes and real-time imaging of background noise
in universities and research institutes.
Detector Parameter:
| Natural Frequency | 5Hz |
| Sensitivity | 190 V/m/s |
| Frequency Range | 0.15～1600Hz |
Physical Indicators：
| Size | Φ129.3mm，H211.5 mm |
| Weight | ＜2.2 kg（with battery without cone） |
| Waterproofness | IP67 |
| Temperature | -40℃~85℃ |
Electronics Indicators:
| Channels | 3-Channels (built-in three-component sensor) |
| Endurance | Built-in battery, typical working conditions, with a range of 20 days (4G transmission mode). External battery can achieve year-round non-stop and ultra long battery life. |
| AD Converter | 32 Bit ADC |
| Preamplifier Gain | 0dB, 6dB, 12dB, 18dB, 24dB, 30dB, 36dB |
| Sampling Interval | 4ms, 2ms, 1ms, 0.5ms, 0.25ms |
| Maximum Input | 5V |
| Dynamic Range | 123dB(1ms Sampling Interval, 0dB Preamplifier Gain) |
| Synchronization Accurancy | ≤1μs(After GPS signal lock) |
| Noise Level | 0.11μV RMS(1ms Sampling Interval, 0dB Preamplifier Gain) |
| Common-mode Rejection | ＞110dB(1ms Sampling Interval, 0dB Preamplifier Gain) |
| Harmonic Distortion | ＜-122dB(1ms Sampling Interval, 0dB Preamplifier Gain) |
Charging and Data Recovery Cabinet
Number of Channels | 6 Channels(Charging and data recovery at same time) |
Weight | 5kg |
| Size | 360mm*280mm*180mm |
Data Transmission Interface | RJ45 Ethernet |
Charging Current | Single Channel Max 4A, 6 Channels Max 24A |
Input Power | 220V/110V AC, Max Current 3A, Max Power 700W |
